Q91-500
Huanhong
| Availability: | |
|---|---|
| Quantity: | |

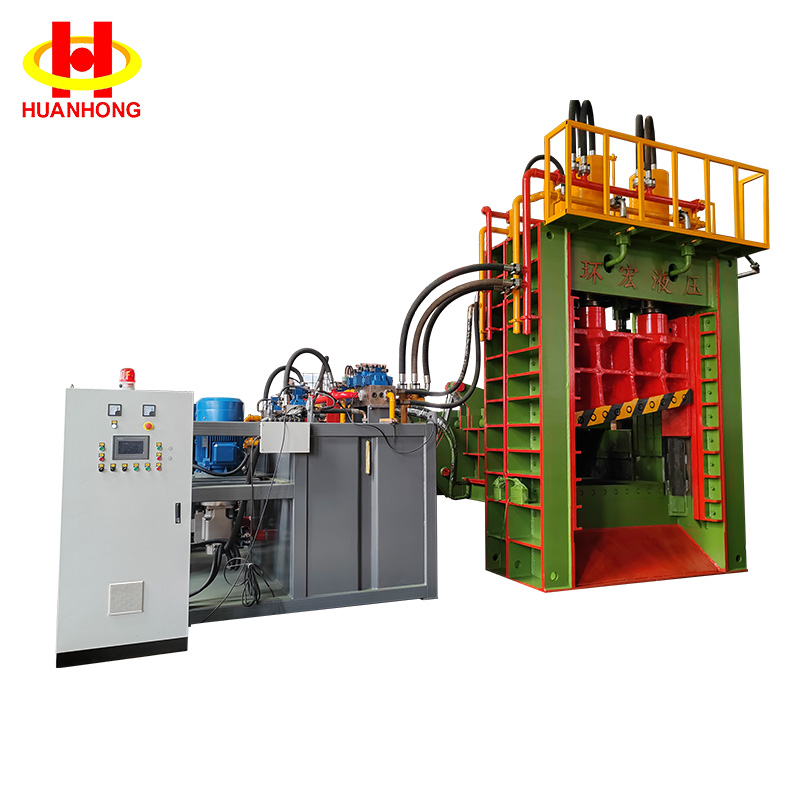

The Q91-500 gantry hydraulic shear is an innovative equipment in the field of metal recycling, specially designed for efficient shearing of various metal scraps. With its powerful cutting capabilities and flexible maneuverability, this shear is ideal for metal recycling depots, dismantling centers and manufacturing plants. Whether it is I-beams, steel bars or automobile bodies, the Q91-500 can handle them easily, greatly improving the recycling efficiency of metal scraps.
Technical specification of Q91-500 gantry shear | |
Model | Q91-500 |
Nominal pressure | 5000 kn |
Blade length | 1600mm |
Material Bin length | 7000mm |
Cutting times (no-load) | 3~5 times/min |
Power Specifications | 380V/3P 50Hz |
Total equipment power | 45*2KW |
Hydraulic system working pressure | ≤25MPa |
The above parameters are for reference only. The balers can be customized.
1. Ultra-high shear force: The rated pressure reaches 5,000 kN, which can easily handle metal scraps with high hardness.
2. Blade length: 1600 mm long blade, processing wider metal scraps at one time.
3. Large-capacity material box: 7000 mm long material box provides sufficient loading space.
4. High-efficiency operation: It can cut 3 to 5 times per minute without load, improving the operation speed.
5. Stable power supply requirements: 380V/3P 50Hz to ensure stable operation of the equipment.
6. Powerful total power: The total equipment power of 90 kilowatts provides powerful power for the hydraulic system.
1. Metal recycling station: cuts various metal scraps to improve recycling efficiency.
2. Dismantling center: Rapid processing of metal parts from scrapped cars.
3. Metal manufacturing factory: cut metal raw materials and optimize the production process.
4. Engineering construction: Cut large metal structural parts for easy transportation and reuse.
