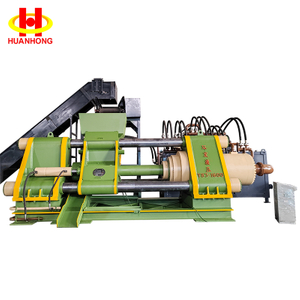

Horizontal Hydraulic Metal Chip Briquetting Machine Y83-630
Share to:
This is a Y83 series horizontal metal chip briquetting machine with a main cylinder pressure of 6300KN. This horizontal metal chip briquetting machine uses brand-name domestic or imported hydraulic and electrical components, and is equipped with automatic feeding, weighing and other devices. The Y83 series metal chip briquetting machine is suitable for aluminum alloy profile factories, steel casting plants, aluminum casting plants, and copper casting plants. It can briquette various metal chips and granular metal powder back into the furnace to replace scrap steel, pig iron, aluminum ingots, and scrap. Copper is used as raw material to reduce burning loss. This metal chip briquetting machine can directly cold-press powdery cast iron chips, steel chips, copper chips, aluminum chips, etc. into cylindrical blocks for easy transportation and furnace charging. The entire process does not require heating, additives, or other processes.
Technical specification of Y83-630 metal briquetting machine
Model
Y83-630
Nominal pressure(kn)
6300
Work pressure(Mpa)
25
Feeding port size(mm)
1000*800
Power(kw)
37*3
Metal block size(mm)
φ180x150~250 (steel chip)
Metal block density(T/m³)
≥4.5 (steel chip)
Metal block weight
15~18
The above parameters are for reference only. The balers can be customized.
Applications
Y83 series metal chip briquetting machine can press various metal chips (iron chips, copper chips, stainless steel chips, aluminum chips, etc.) and powdery metal powders (iron powder, copper powder, lead powder, etc.) into high density Cylinder metal block.
